Overview
Project No. :
# 1232
Project Type :
Utility Scale Solar Design
Location :
New York
Project Description

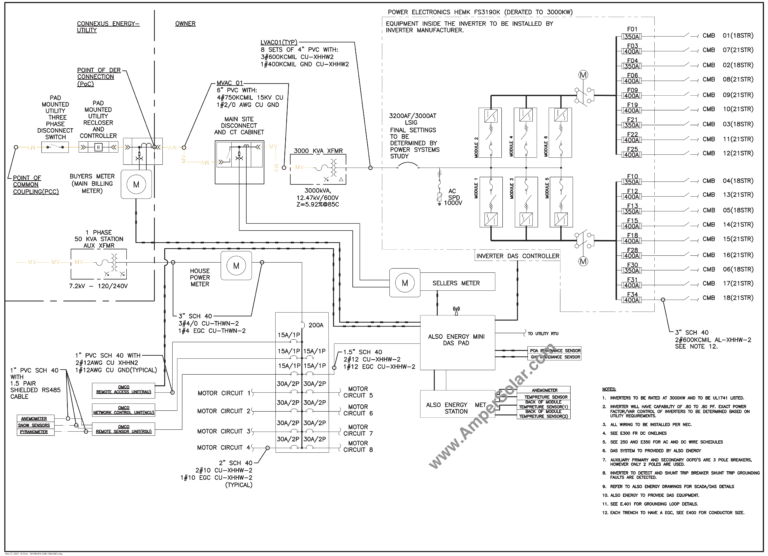

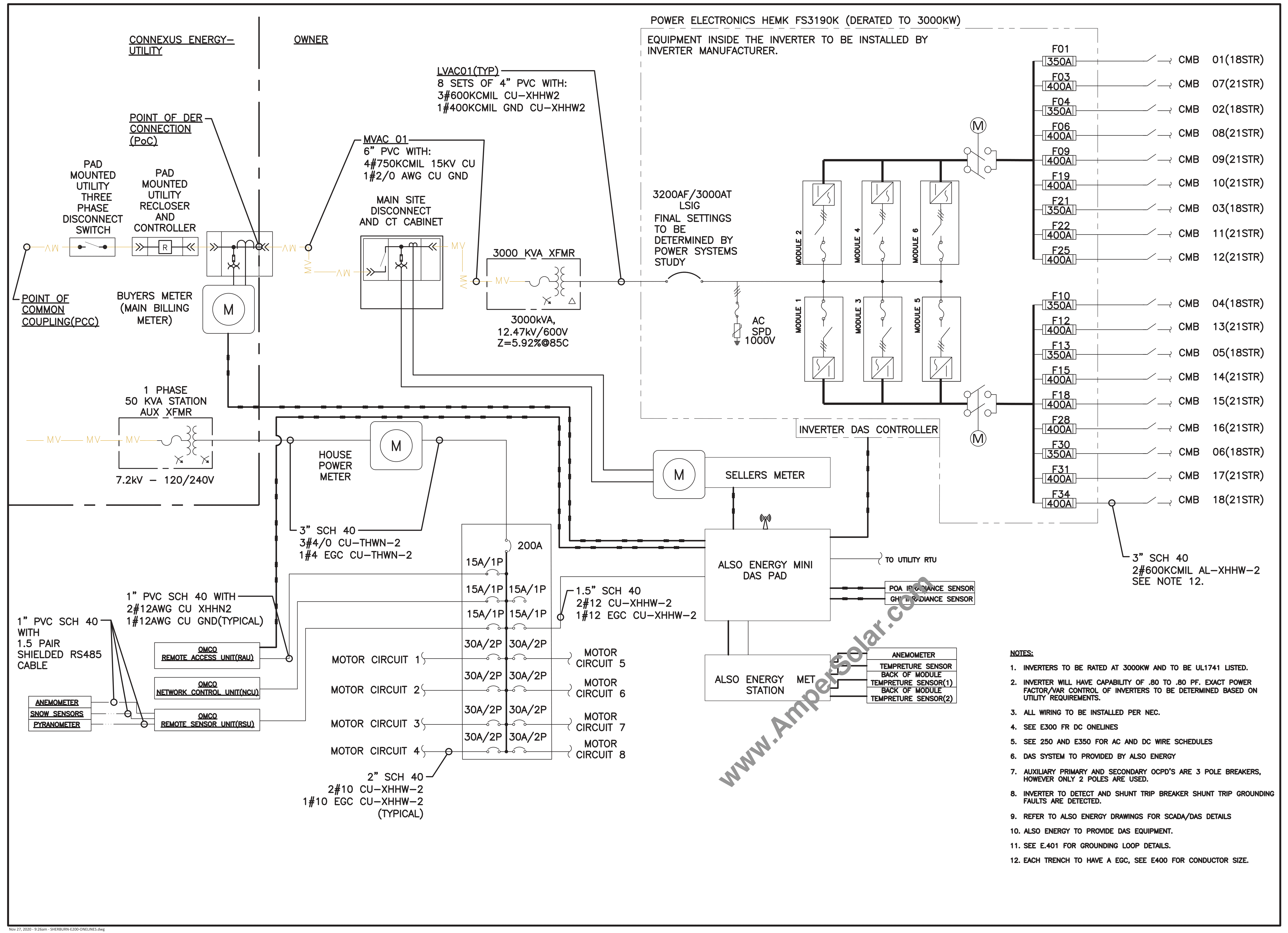

3.69MW DC/ 3MW AC; Ground Mount Single Axis Tracker; 360 Strings; 27 Modules per string. It consists of 9,720 Canadian solar modules with 1 Power Electronics central inverter. The project was designed for east-west tracking. 12.47kv AC was provided to the utility with underground cable within the project area to tie to the existing underground line at POI to comply with NEC and local electric company protection and safety switch requirements.
